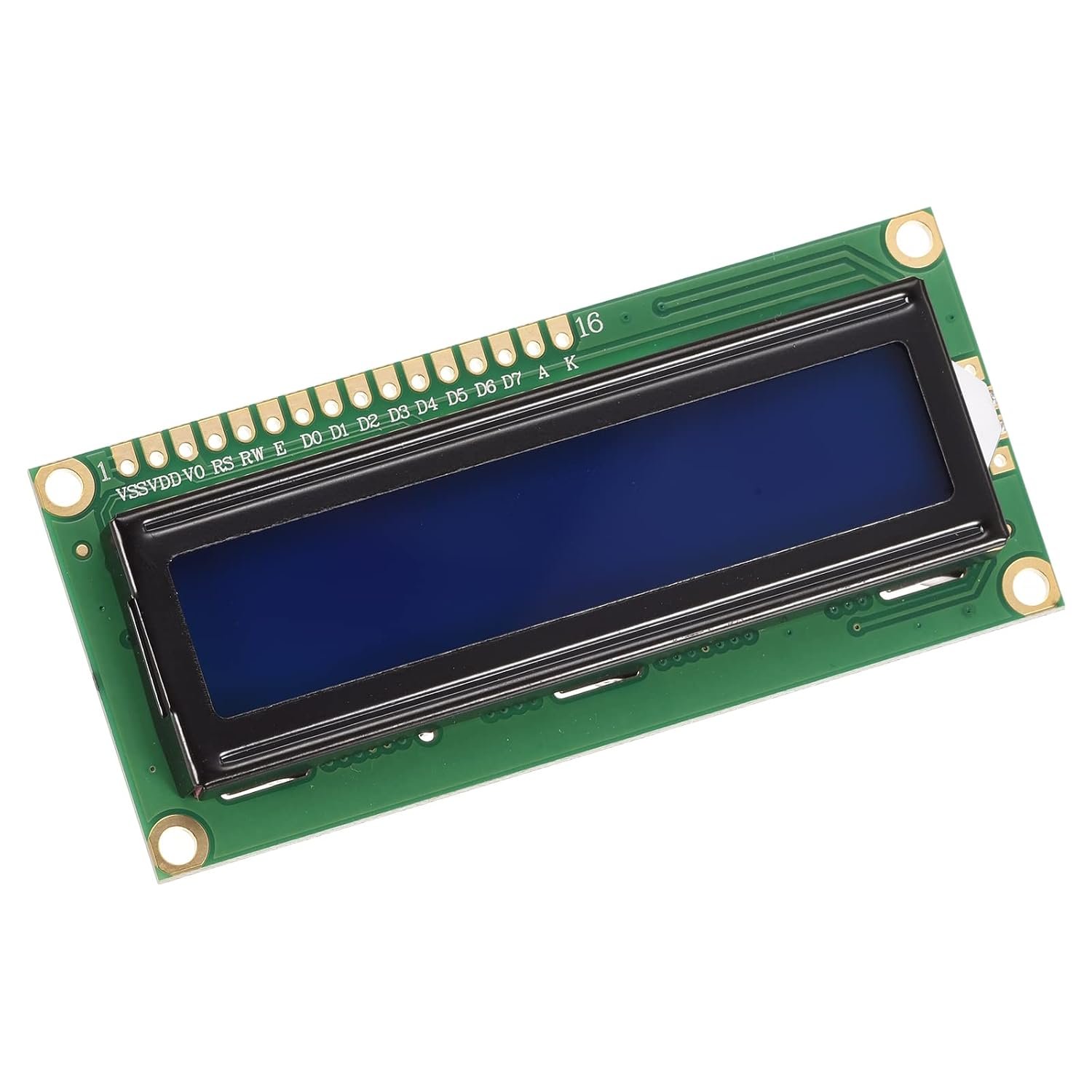

LCD1602 16×2 Character Display with Blue Backlight
The LCD1602 is a practical character-display module designed to show letters, numbers, symbols and basic system information. It provides two rows, with space for up to 16 characters on each row. White characters appear clearly against the blue LED backlight, making the displayed information easy to read.
This module operates using a 5V supply and supports both 4-bit and 8-bit parallel communication. In 4-bit mode, fewer microcontroller pins are required, making it a convenient option for Arduino and other development-board projects.
Display contrast can be adjusted through the contrast pin, normally using a potentiometer. The backlight can also be controlled according to the project’s circuit design.
For projects requiring fewer connections, a separately available I2C interface adapter can be attached to the module. This generally reduces the connection requirement to four lines: VCC, GND, SDA and SCL.
Key Features
- Displays 16 characters per row
- Two-line character display
- Clear white characters with blue backlight
- 5×7 dot-matrix character format with cursor
- Supports 4-bit and 8-bit parallel modes
- Adjustable display contrast
- Controllable LED backlight
- Compatible with commonly available LCD libraries
- Suitable for Arduino and many other microcontrollers
- Optional I2C adapter support
Technical Specifications
| Parameter | Specification |
|---|---|
| Display type | Character LCD |
| Display format | 16 characters × 2 rows |
| Character colour | White |
| Backlight colour | Blue |
| Character matrix | 5 × 7 dots |
| Operating voltage | 5V DC |
| Communication | 4-bit or 8-bit parallel |
| Contrast control | External adjustment through contrast pin |
| I2C support | Requires a separately available I2C adapter |
Common Applications
- Sensor-value display
- Temperature and humidity monitors
- Digital counters and timers
- Home-automation controllers
- Robotics projects
- Electronic measurement instruments
- Menu-based control systems
- Attendance and access-control systems
- Battery and power-monitoring projects
- Student science and electronics projects
Package Contents
- 1 × LCD1602 16×2 Character Display with Blue LED Backlight
Important Information
- This is the standard parallel-interface version.
- An I2C adapter is not included unless specifically mentioned in the product package.
- A potentiometer may be required to adjust the display contrast.
- Module colour, dimensions and component placement may vary slightly depending on the manufacturing batch.
