TFT LCD Module SPI Interface 4 IO – 1.8

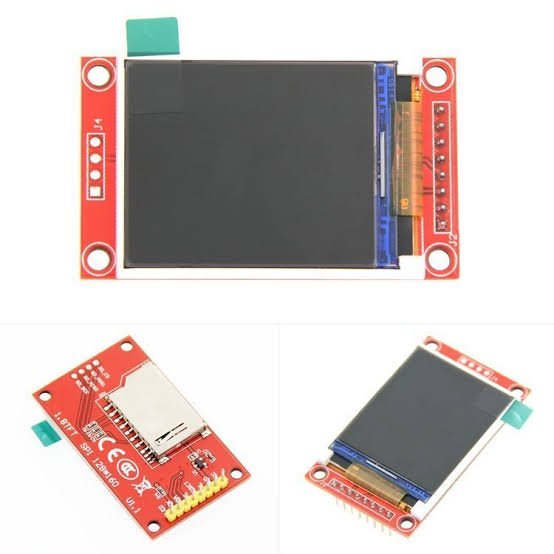

1.8-Inch TFT LCD Display Module – 128×160 SPI with MicroSD Slot

Add bright, colourful graphics to your electronics and embedded projects with this compact 1.8-inch TFT LCD module. It features a 128×160-pixel display and communicates through a 4-wire SPI interface, requiring only a few microcontroller pins.

Powered by the ST7735 display controller, the module supports up to 262,144 colours for displaying text, icons, sensor readings, menus, animations and images. It also includes an onboard voltage regulator and logic-level support, making it suitable for many 3.3V and 5V microcontroller platforms.

The built-in microSD card slot allows compatible bitmap images and other data to be loaded from FAT16 or FAT32 formatted memory cards.

Key Features

• Compact 1.8-inch full-colour TFT display
• 128×160-pixel resolution
• ST7735 display controller
• 4-wire SPI communication
• Compatible with hardware and software SPI
• Wide viewing angle with good contrast
• Onboard 3.3V voltage regulation
• Suitable for 3.3V and 5V power systems
• Integrated microSD card slot
• Ideal for graphical menus, instruments and sensor displays

Technical Specifications

Compatible Applications

• Arduino and ESP development projects
• Sensor monitoring systems
• Portable instruments
• Robotics control panels
• Mini graphical interfaces
• DIY gaming projects
• Image and bitmap display
• Educational electronics projects
• IoT dashboards

Package Contents

• 1 × 1.8-Inch TFT LCD Display Module with microSD card slot
