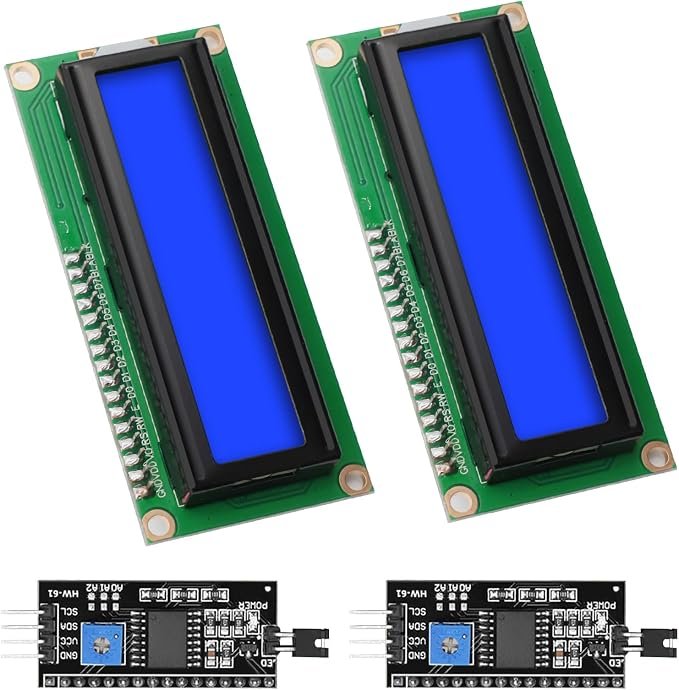

LCD 1602 16×2 Character Display with I2C Interface – Blue Backlight
Product Description
This 16×2 LCD module combines a clear blue-backlit character display with an integrated I2C interface. It can show up to 16 characters on each of its two rows and is ideal for displaying sensor readings, status messages, counters, menus and other project information.
The I2C interface significantly reduces wiring and typically requires only four connections: VCC, GND, SDA and SCL. This saves valuable microcontroller pins compared with a standard parallel LCD connection.
The module is compatible with Arduino, Raspberry Pi, ESP8266, ESP32 and many other supported development boards. Its onboard potentiometer allows the display contrast to be adjusted easily.
Key Features
- 16 characters × 2 rows
- Clear blue LED backlight
- Integrated I2C/IIC interface
- Requires only two communication lines
- Adjustable contrast using the onboard potentiometer
- Reduced wiring and GPIO usage
- Compatible with commonly available I2C LCD libraries
- Suitable for Arduino, Raspberry Pi and other microcontrollers
Pin Configuration
| Pin | Function |
|---|---|
| GND | Ground |
| VCC | Power supply |
| SDA | I2C serial data |
| SCL | I2C serial clock |
Common Applications
- Sensor monitoring systems
- Robotics projects
- Digital meters and counters
- Home-automation projects
- IoT devices
- Menu and status displays
- Educational electronics projects
Package Contents
- 1 × LCD 1602 16×2 Display Module with I2C Interface and Blue Backlight
Note
The I2C address is commonly 0x27 or 0x3F, but it may vary depending on the supplied module. Use an I2C scanner program to confirm the address before programming.
